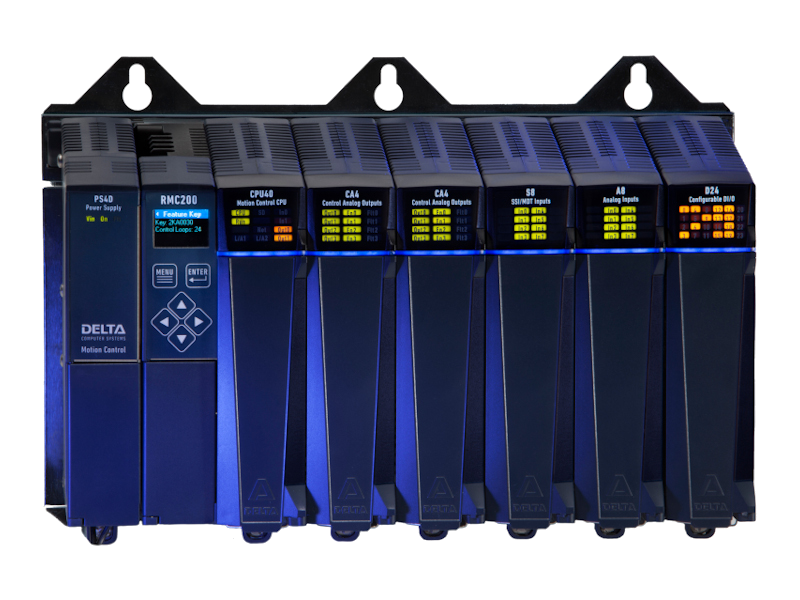

De RMC200 is een meest recente modulair opgebouwde motion controller bestaande uit een basis CPU muduul met interface voor maximaal 32 assen.
Met het softwarepakket RMCtools kunnen alle series worden ingesteld, geprogrammeerd en gemonitord. In dit pakket zitten handige tools die het inbedrijfstellen en storingzoeken vergemakkelijken. Zoals monitoren van alle statusregisters en parameters, Grafieken voor weergave van alle variabelen in de RMC, wizzards voor auto-tuning, sensor offset en scale, en programmering enz.
De RMC200 ondersteunt de meeste functies van de RMC70 en RMC150. Nieuwe features zijn onder meer:
- "Feature Key" De verwijderbare en in het veld te upgraden Feature Key-token in de CPU-module specificeert het aantal door de klant bestelde regelkringen.
- Hogere resolutie (18 bit) voor analoge ingangen
- Snellere cyclustijd (250 μsec) voor control loop
- Negatieve correctiefactor voor load cellen
- Meer feedback filter typen
Closed Loop Control
Full PID loop control with velocity, acceleration and jerk feed forwards for precise synchronized motion. Directional gain factors support fluid power control.
Position Control.
- Point-to-Point moves
- S-curves
- Speed at Position
- Gearing
- Cyclic Sinusoidal Motion
- Splines and Cams
- Rotary motion (incremental and absolute)
Velocity Control
- Velocity control with position feedback
- Velocity control with velocity feedback
Pressure and Force Control
- Pressure sensor, load cell or differential force
- Linear or S-curve Ramps
- Gearing
- Cyclic Sinusoidal Profile
- Splines and Cams
Position-Pressure and Position-Force Control
- Transition seamlessly between position or velocity control and pressure or force control
- Pressure or Force Limit – limit the pressure or force during a position or velocity move.
Active Damping
- For high-performance control of pneumatics and difficult systems.
Open Loop Control
- Seamless transition from open loop to closed loop. Ramp Control Output between two values, or ramp based on position for hardto-control systems.
Quick Move
- Move in open loop and stop in closed loop for fast, smooth motion with accurate stops.
Valve Linearization
- For valves with a sharp knee or “kink” in the flow versus command signal diagram.
Custom Feedback Control using any calculated value as feedback
- Sum, difference, average, etc.
- Switch feedback on-the-fly
- Redundant feedback
- Feedback linearization
Type |
Naam |
Omschrijving |
Basis |
B5 |
5 slots (3 I/O slots) |
Basis |
B7 |
7 slots (5 I/O slots) |
Basis |
B11 |
11 slots (9 I/O slots) |
Basis |
B15 |
15 slots (13 I/O slots) |
Voeding |
PS4D |
24VDC-input, 35 watt voeding voor B5, B7 and B11 basis |
Voeding |
PS6D |
24VDC-input, 50 watt voeding voor B15 basis |
CPU |
CPU40 |
CPU met USB, dual-port Ethernet, display, 2x dig. ingang, 2x dig. uitgang |
CPU |
CPU20 |
In voorbereiding |
Moduul |
A8 |
8x analoge ingang +/-10V of 4-20 mA |
Moduul |
S8 |
8x SSI, Start/Stop of PWM ingang, 1x impulsgever ingang |
Moduul |
Q4 |
4x impulsgever ingang HTL/TTL |
Moduul |
CA4 |
4x analoge uitgang +/-10V of 4-20mA, 4x error ingang, 4x enable ingang |
Moduul |
CV8 |
8x analoge ingang +/-10V, 8x dig. in- of uitgang |
Moduul |
D24 |
24x dig. in- of uitgang, 4x high speed ingang voor impulsgever |
Moduul |
U14 |
4x analoge ingang, 2x analoge uitgang, 4x dig. in- of uitgang, 2x high spee |
